Outside Broadcast made easier
Diakon OB Unit
DiakonTV’s OB unit is a mobile production hub renowned for its ability to provide high-quality and reliable live event coverage. Equipped with advanced technology and supported by our experienced professionals, our OB Unit seamlessly integrates into various event environments to capture moments with clarity and precision.
Specifications

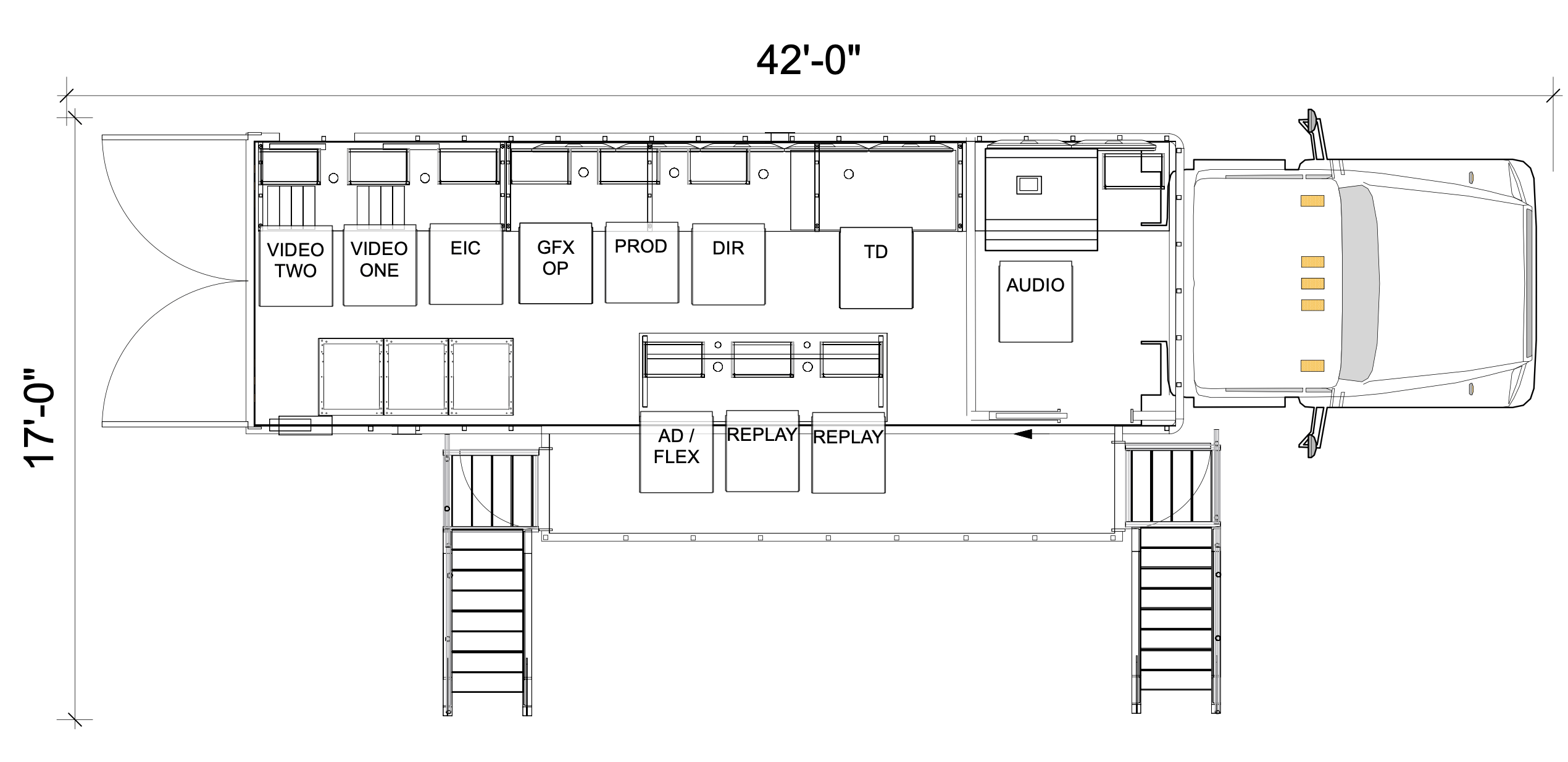

Vehicle-Specific Information
Curbside Expando
45’ Long X 13’ 6” High X 17’ Wide
200 AMP, 208 VOLT SINGLE PHASE
16’ Support Trailer
Production
Ross Vision Switcher, 80 Inputs / 48 Outputs, 6ME
Ross Vision Surface 4ME
Ross Vision Surface 2ME (Available on Request)
Lance Controller with Remote
6 – Quad Multiviewer
2 – 9 X 1 Multiviewer
2 – 9 X 1 Fixed Multiviewer
Communications
RTS Cronus Frames – 60 Ports
17 KP-32 Panels
2 – Dante Beltpacks
4 Line Innkeeper Telephone Interface
Cameras
6 – Hitachi Z-HD5000 Cameras
2 – Large Lens Sled Adapter
2 – Marshall POV
2 – PTZ Cameras
2 – Heavy Hard Camera Tripods
1 – Vinten 700 Pan Head
1 – Vinten 70 Pan Head
2 – Vinten 250 Tripods
2 – Sachtler 18P Tripods
Lenses
2 – Canon 55x with 2X
4 – Hand Held Canon HDGC KJ20x8.5B KRSD PS12 20X
Support Equipment
HD 72 X 72 Router
HD 40 X 40 MV Router
2 – Dedicated Streaming PCs
2 – AppleTV (Client Provided Logins)

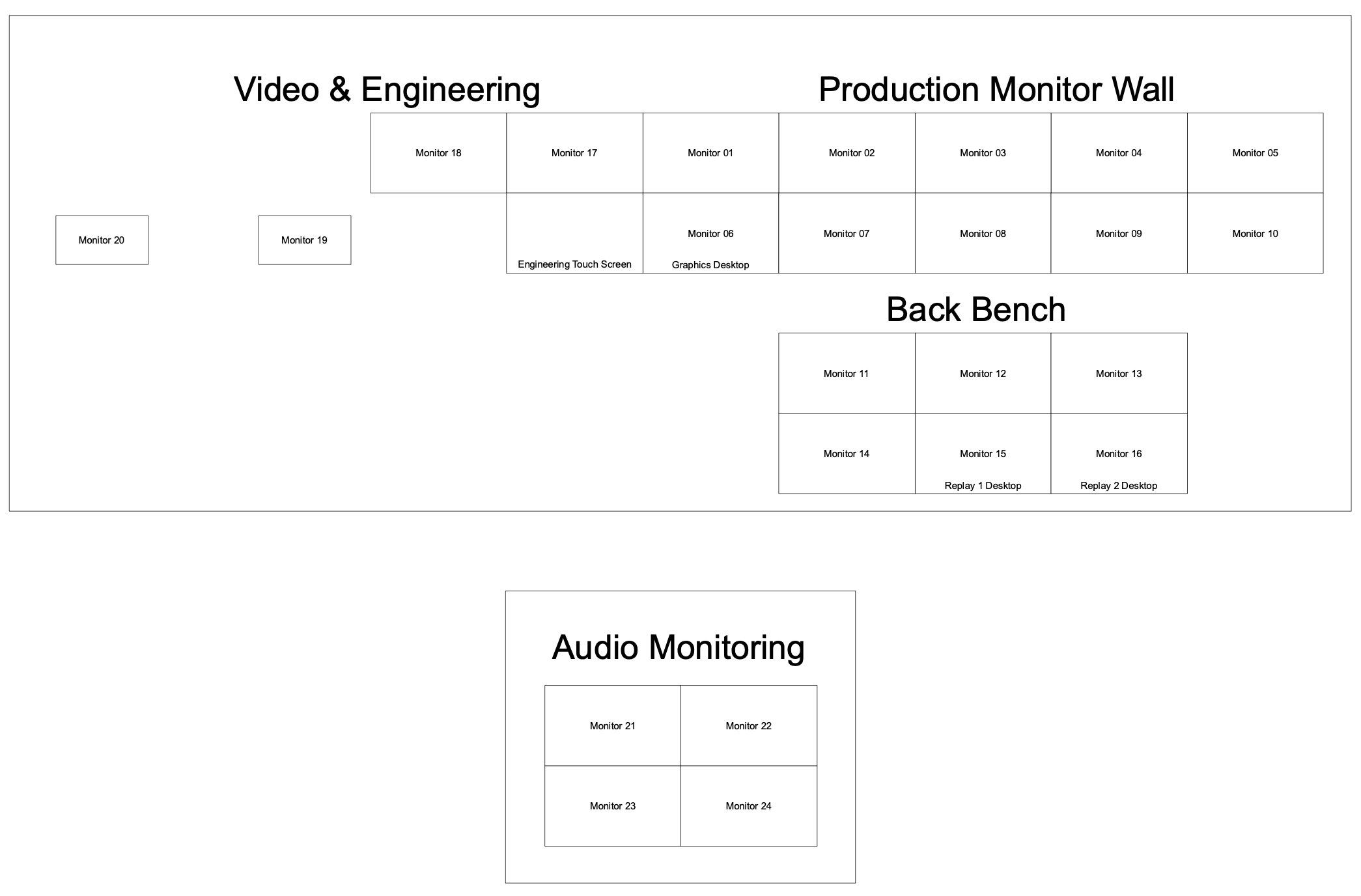

4 – 32” Monitors (Booth & Field)
40’ Jib (DTV Operator Required)
Audio
Yamaha DM 2000 Console – 96 Channel – 22 Bus
4 – 16X16 Dante Cards
1 – 8 Input Analog Card
1 – 8 Output Analog Card
1 – Spot On Music Replay System
Microphones
4 – Shure Announcer Headsets
4 – Studio Technologies Announcer Cough Boxes (Dante)
4 – Shure Axient Digital Hand Held Microphones
1 – Shure Axient AD600 Digital Spectrum Manager
1 – Shure Axient AD610 Diversity ShowLink Access Point
6 – Sennheiser 816 Shotgun Microphones
3 – Sennheiser MD46 Stick Microphones
2 – DPA 4288 Cardiod Headset Microphone (dark tone)
4 – DPA 4288 Cardiod Headset Microphone (light tone)
2 – DPA 4080 Cardiod Lavalier Microphones
Record and Playback
2 – 8X2 Replay Systems – with replay controllers
2 – EVS XT3 with XFile3 (Available On Request)
4 – HyperDeck Studio Pro Recorders
2 – HyperDeck Studio Pro Dedicated to EFX
Graphics
1 – Ross xPression 10.5 – Dual Channel System
1 – Chyron HyperX 3.1 / v8.8 – Dual Channel System (Available On Request)
Cabling and Support
6 – Multidyne HUT Systems
4 – 15 Meter SMPTE
4 – 30 Meter SMPTE
4 – 150 Meter SMPTE
4 – 450 Meter TAC-12 ST Single Mode Fiber
2 – 230 Meter TAC-12 ST Single Mode Fiber
5 – 100 Meter TAC-12 ST Single Mode Fiber
1 – 5’ 400 AMP Feeder Tails
1 – 50’ 400 AMP Feeder
1 – 100’ 400 AMP Feeder
Want to get your project started?
Do you want to elevate your live event coverage? Contact us to discover how our OB unit can help bring your vision to life.
